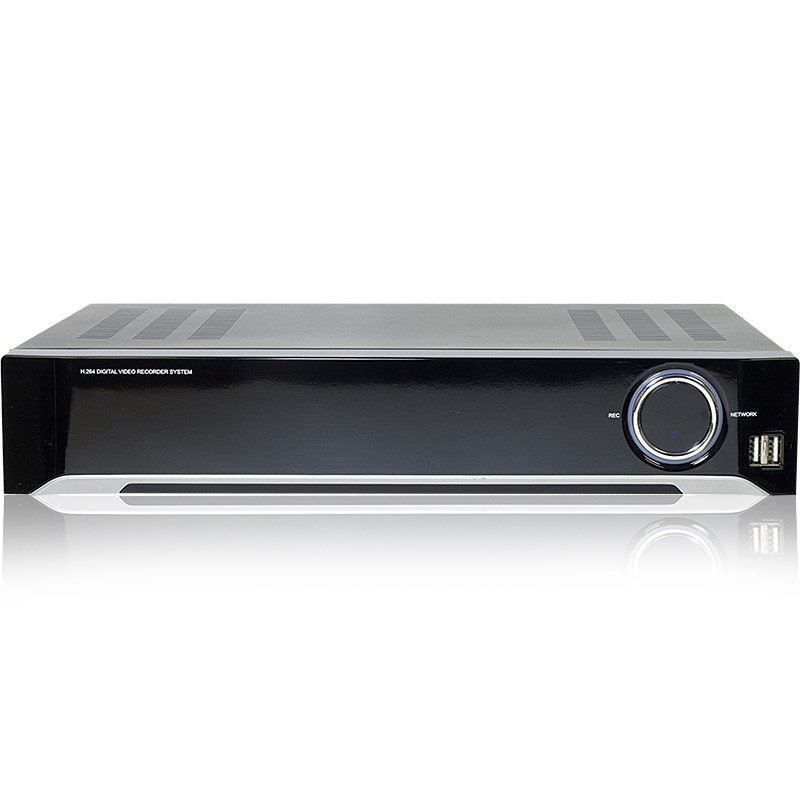

AVST-RT108 |
Video |
Video Input |
8CH BNC |
Individual HD/Analog Selectable |
All Hybrid (Manual Setting, two channels pair) |
Available source |
AHD 720p25,30/Composite/960H/Mixed |
Output |
1 HDMI (Main Display) / 1 VGA (Main Display) |
Audio |
Audio Input |
4 RCA |
Ouput |
1 RCA, 1 HDMI |
Sensor In |
4 (NC, No Selectable) |
Alarm out |
1 relay |
Operating System |
Embedded Linux OS |
Display |
Speed |
Real Time |
Resolution (Pixel) |
1280X1024, 1280X720, 1920X1080 |
Split screen |
1, 4, 6, 8, 9 |
Main Recording |
CODEC |
H.264 |
Resolution (Pixel) |
720p (720p25, 30) / 960H, D1 (Composite, 960H) |
Speed |
NTSC area: 120fps@720p, PAL area: 100fps@720p |
Playback |
Display |
1, 4, 6, 8, 9 |
Search Mode |
Calendar, Event, POS, Panorama, Thumbnail |
Speed |
NTSC area: 60fps@720p, PAL area: 50fps@720p |
Fast/Slow speed |
Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause |
Network |
Network Interface |
Megabit Ethernet |
Low Resolution |
480x256 (720p25,30) / CIF (Composite, 960H) |
Speed |
NTSC area: 120fps@480x256, PAL area: 100fps@480x256 |
Backup |
Interface |
USB 2.0 X 2 |
Backup Device |
External HDD, CD&DVD-RW, Network, Thumb Drive |
The number of HDD |
1 SATA |
Others |
Power |
24W |
Operating |
5~40°C (41~104F) |
Relative Humidity |
Maximum 80% non-condensing |
Dimension |
300(W) x 210(D) x 48(H) mm |
