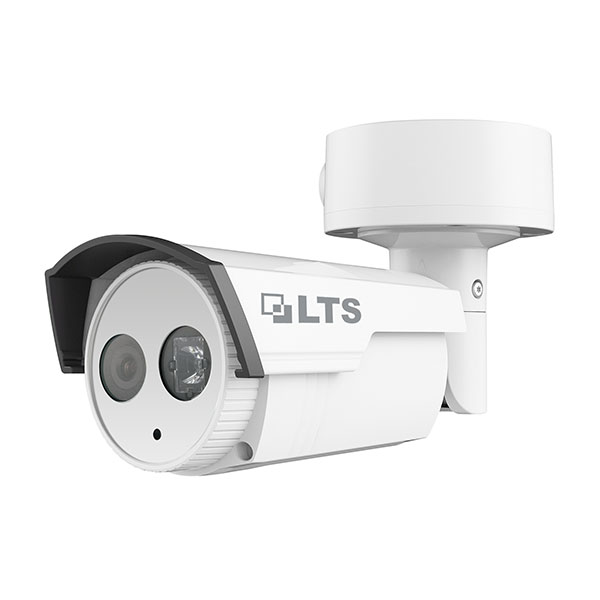

HD-TVI Bullet IR 3.6mm 720p Camera (CMHR9432)

SKU: 121454
MPN: CMHR9432
$139.95
$95.95

Accepted Payments

HD 720P, HD-TVI Technology Over Coax, 1/3"Sensor, 3.6mm Fixed Lens, 1 Matrix IR LED up to 131ft(40m)IR distance, low illumination,DC12V
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or
Chat Live (Mon–Fri 8am–6pm CT)
  • 1/3" Sensor
  • HD 720P Video Output
  • Adopts HDTVI Technology
  • True Day/Night
  • 3.6mm Fixed Lens
  • 1 Matrix IR LEDs up to 131ft (40m)
  • Low illumination
  • OSD Menu via UTC technology with Platinum TVI DVR
  • DC 12V
CMHR9432
Camera
Image Sensor  1/3"Sensor
Signal System NTSC / PAL(Euro Version)
Effective Pixels 1305(H)×1049(V)
Min. Illumination 0.001 Lux @ (AGC ON),0 Lux with IR
Shutter Speed NTSC: 1/60 ~ 1/50,000
PAL: 1/50 ~ 1/50,000
Lens 3.6mm
Day & Night ICR
Synchronization  Internal synchronization
Video Frame Rate NTSC:720p@60fps/PAL:720p@50fps
HD Video Output 1 Analog HD output
S/N Ratio More than 62dB
Menu
Automatic Exposure Globe AE / DWDR
AGC Low / Middle / High / Off
Slow Shutter Support
White Balance Auto/Manual
D / N Mode Color/ BW / SMART IR
3D DNR Low/Middle/High/off
Motion Detection Support, maximum 4 zones
Privacy Mask On/Off,maximum 8 zones
UTC Function Support
Language English/Chinese
Functions Digital Wide Dynamic Range, 3D Digital Noise Reduction, Sharpness,Brightness, Digital Zoom, Mirror
General
Working Temperature
/Humidity
-4°F - 140°F (-20 °C - 60 °C)
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max.4.5W
Weather Proof Ratings IP66
IR Range 131ft(40m)
Dimension  4.1" × 4.1"× 10.4" (105.0 x 104.8 ×263.1mm)
Weight 1.8lb(800g)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Resolution 1MP/720p
Camera Features WDR
Camera Features Outdoor
Lens 3.6mm
Technology HD-TVI
