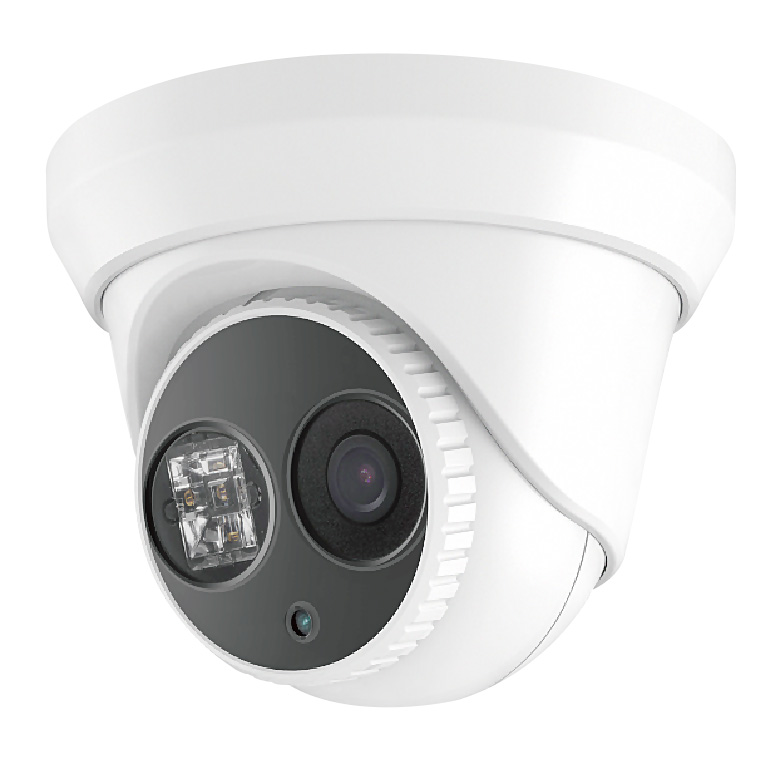

3MP Dome Network IP Camera DWDR 2.8mm (CMIP1132-28)

SKU: 121630
MPN: CMIP1132-28
Be the first to review this product
$279.95
$145.95

Accepted Payments

3 megapixel high resolution, HD real-time video, Day/night auto switch, IP66 ingress protection, Matrix IR illuminator, up to 100ft(30m), 3D DNR & DWDR
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)
  • 3 megapixel high resolution
  • HD real-time video
  • Day / night auto switch
  • IP66 ingress protection
  • Matrix IR illuminator,up to 100ft(30m)
  • 3D DNR & DWDR



Camera
Image Sensor 1/3" sensor
Min. Illumination 0.14 [email protected], AGC on
0 lux with IR
Shutter time 1/25s ~ 1/100,000s
Lens [email protected]
2048 × 1536: angle of view: 86°
1920 × 1080: angle of view: 98.5°
Lens Mount M12
Angle adjustment Horizontal: 0° ~ 360°, vertical: 0° ~ 75°, rotation: 0° ~ 360°
Digital noise reduction 3D DNR
Wide dynamic range Digital WDR
Day& Night ICR
Compression Standard
Video Compression H.264 /MJPEG
Bit Rate 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. Image Resolution 2048x1536
Frame Rate 60Hz: 20fps (2048 x 1536), 30fps (1920 x1080), 30fps (1280 x 720)
50Hz:  20fps (2048 x 1536),  25fps (1920 x 1080), 25fps (1280 x 720)
Image Settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network Storage NAS (iSCSI optional)
Alarm Trigger Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP, IPv6 optional)
System Compatibility ONVIF, PSIA, CGI
General functionalities Flickerless, heartbeat, mirror, user authentication, video mask, watermark,reset
Interface
Communication Interface 1 RJ45 10M / 100M ethernet interface
General
Operating Conditions -13°F ~ 140°F(-25°C ~ 60°C)
Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 10%, PoE (802.3af)
Power Consumption Max. 7W
Weather Proof IP66
IR Range Up to 100 ft(30m)
Dimensions  Φ5.0"x3.8"(127.0 x 97.5 mm)
Weight 1.5lb(670g)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Lens 2.8mm
Technology IP/Network
Resolution 3MP
Camera Features Outdoor
Camera Features WDR
