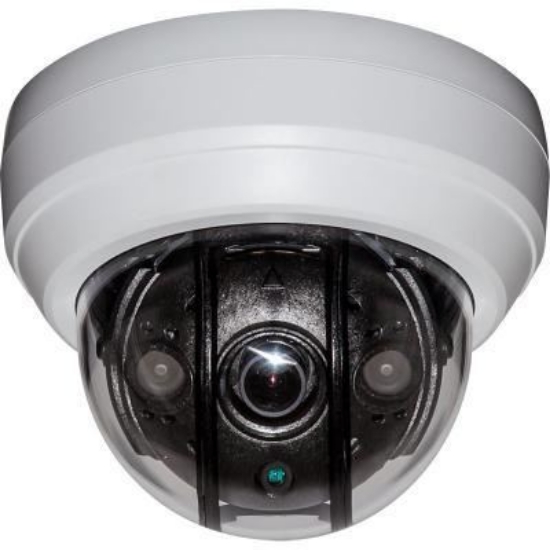

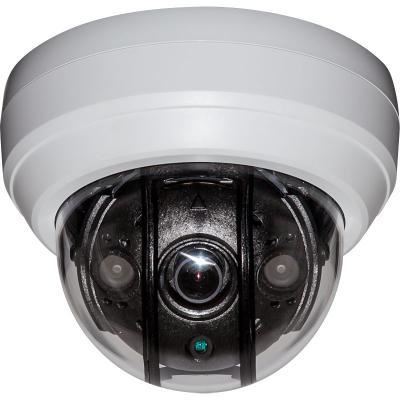

TDR 2542V |
Resolution |
1080p, 720p, 720p CROP |
Sensor |
1/2.9 inch Sony CMOS |
Total Pixels |
2000(H) × 1241(V) = 2,482,000 |
Effective Pixels |
1944(H) × 1092(V) = 2,122,648 |
Scanning System |
Progressive |
S/N (Y Signal) |
More then 52 dB (AGC Off) |
Video Output |
TVI / (CVBS: 1.0Vp-p (75ohm):Option) |
Min. Illumination |
0 Lux at IR On |
White Balance |
Auto / Auto Ext / Preset / Manual |
Shutter |
Auto / Manual (1/30sec ~ 1/60,000sec) |
Brightness |
Adjustable (0~20 Step) |
Sens Up |
OFF / X2 / X3 / X4 / X5 / X6 / X7 / X8 |
DNR |
OFF / Low / Middle / High |
Backlight |
OFF / WDR / BLC / HLM |
ACE |
OFF / Low / Middle / High |
Day & Night |
Auto (Day <--> Night Time Change), Color, B/W, Extern, MDIR (Search Option) |
Privacy |
OFF / ON (16 Zone) |
Motion |
OFF / SET |
Digital Zoom |
0~127 |
Flip |
OFF / ON |
Freeze |
OFF / ON |
Language |
English, Chinese, Chinese(S), Japanese, Korean |
Sharpness |
Adjustable (0~10 Step) |
Defog |
OFF / SET |
Communication Port |
RS-485 (Pelco-D) |
Smart IR |
Adjustable (0~20 Step) |
Operating Temp / Humidity |
-10°C ~ +50°C(14°F ~ 122°F) / 30%~80% RH |
Storage Temp / Humidity |
-20°C ~ +60°C(-4°F ~ 140°F) / 20%~90% RH |
Power |
DC 12V |
Signal Transmission |
The distant difference is occurred according to cable option and other circumstances. (Coaxial Cable 300M) |
