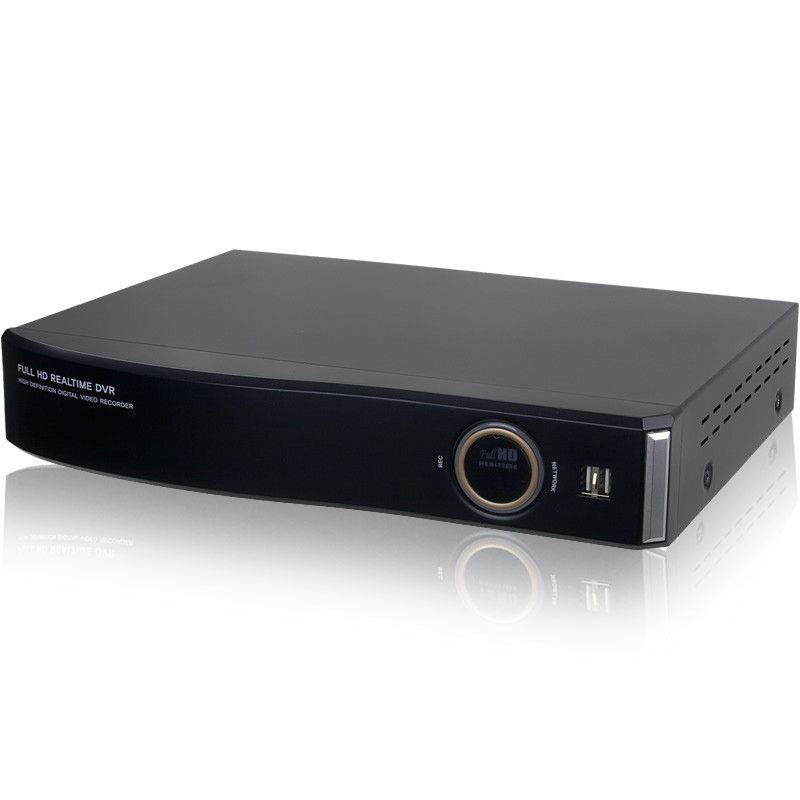

TVST MAGIC-TL08 |
Video |
Camera Input |
8 BNC |
Individual HD/Analog |
All Hybrid |
Available Source |
TVI 720p25,30/1080p25,30/Composite/960H/Mixed |
Output |
1 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT) |
Audio |
Audio Input |
4 RCA |
Output |
1 RCA |
Sensor In |
4 (NC, NO selectable) |
Alarm out |
1 Relay |
Operating System |
Embedded Linux OS |
Display |
Speed |
Real Time |
Resolution (Pixel) |
1280×1024, 1280×720, 1920×1080 |
Screen Split |
1 / 4 / 6 / 8 / 9 |
Recording |
CODEC |
H.264 / JPEG for 3G, Dual CODEC |
Resolution (Pixel) |
1080p (1080p25,30) 720p (720p25,30) 960H, 720H (Composite, 960H) |
Picture Quality |
4 Steps (Super, High, Medium, Low) |
Speed |
NTSC : 240fps@720p / 120fps@1080p PAL : 200fps@720p / 100fps@1080p |
Playback |
Display |
1 / 4 / 6 / 8 / 9 |
Search Mode |
Calendar, Event ,POS , Panorama, Thumbnail |
Speed |
NTSC : 60fps@1080p PAL : 50fps@1080p |
Fast/Slow speed |
Normal, REW & FF [recorded speed ×2, ×4, ×8,×16,×32,×64,×1/2,×1/4], Frame to frame, Pause |
Network |
Network Interface |
Gigabit Ethernet |
Speed |
NTSC : 40fps@720p PAL : 40fps@720p |
Protocol |
TCP/IP, HTTP, DHCP |
Application |
Windows 7 / 8 (PC Client system & IE)/MAC |
Web Browser |
Internet Explorer, Safari, FireFox, Chrome |
Smart phone App |
MR. Patrol : Android, iPhone for Live & Search |
Backup |
Interface |
USB 2.0 × 2 |
|
Backup device |
External HDD, CD & DVD-RW, Network, Thumb Drive |
The Number of HDD |
2 SATA (No capacity limit ; 4TB of more) |
Others |
Power Consumption |
60W |
Operating Temperature |
5 ~40°C(41~104°F) |
Relative Humidity |
Maximum 80% non-condensing |
Dimension |
13.39(W)×9.84(D)×2.36(H)inches / 340(W)×250(D)×60(H)mm |
