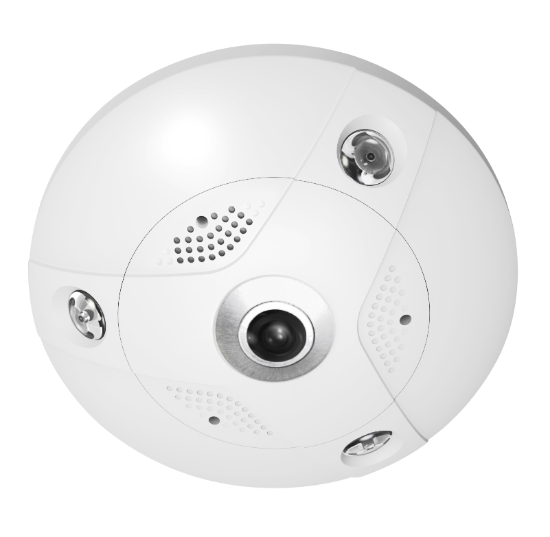

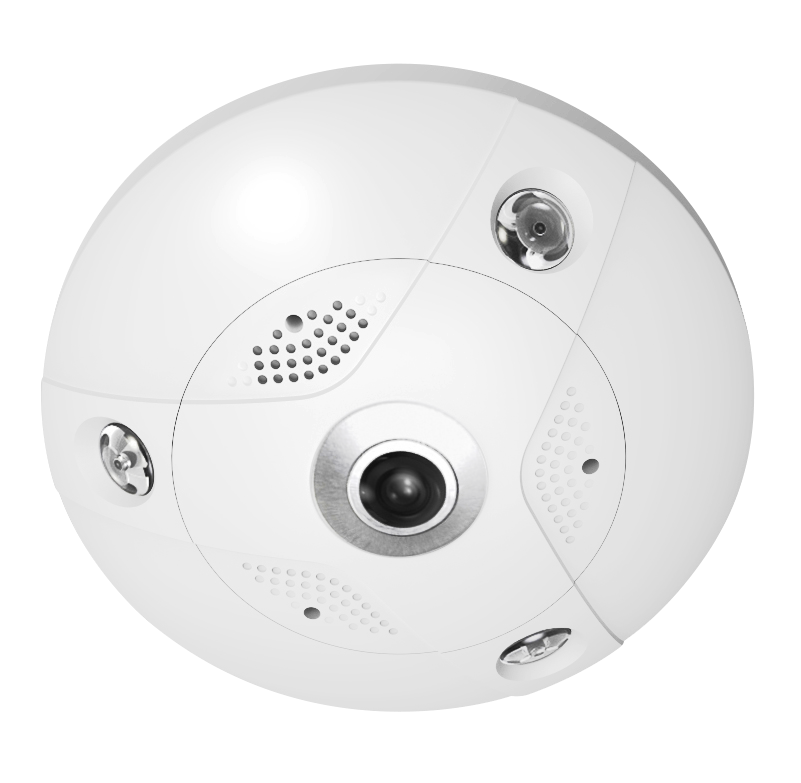

3MP 360 IR Fisheye IP Camera (CMIP7532FW)

SKU: 121682
MPN: CMIP7532FW
1 review(s) | Add your review
5.0 1
$469.99
$399.99

Accepted Payments

360 Degree 3MP Fisheye IP security Camera, with resolution up to 2048 x 1536 and a complete 360° view for up to 33ft IR all around nigh-vision coverage.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)
  • 1/3” sensor
  • 3 megapixel image sensor
  • Up to 2048 x 1536 real-time streaming
  • 120dB wide dynamic range
  • 360°view angel
  • Multiple viewing modes
  • Multiple ePTZ streams with preset and
  • patrol functions
  • Up to 33ft(10m) IR range



CMIP7532FW
Image Sensor  1/3"Sensor
Min. Illumination 0.1Lux @ (F1.2,AGC ON),0.6Lux @ (F2.8,AGC ON )
0 lux with IR
Shutter Speed 1/25 s to 1/100,000 s
Slow Shutter Support
Lens 1.19mm @F2.0, angle of view: 360°
Lens mount   M12
Day & Night ICR
Digital Noise Reduction 3D DNR
Wide dynamic range 120dB WDR
Compression Standard
Video Compression H.264/MPEG4/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
Video Bit Rate 32 Kbps-16 Mbps
Audio Compression G.711/G.726/MP2L2
Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.726) / 64Kbps (MP2L2)
Max Resolution 2048×1536
Frame Rate

High-frame Mode: support
50Hz: 1 x fisheye (2048 x 1536, 25fps) or (1536 x 1536, 25fps) or
4 x PTZ (800 x 600, 25fps)
60Hz: 1 × fisheye (2048*1536, 30fps) or (1536 × 1536, 30fps) or
4 × PTZ (800 × 600, 30fps)
Multi-channel Mode: support
50Hz: 1 x fisheye (1536 × 1536, 20fps) and 1 x panoramic
(1600 x 1200, 20fps) and 3 x PTZ (800 x 600, 20fps)
60Hz: 1 x fisheye (1536 × 1536, 20fps) and 1 x panoramic
(1600 x 1200, 20fps) and 3 x PTZ (800 x 600, 20fps)
Image Setting Saturation, Brightness, Contrast adjust by client software or web browser
Backlight Compensation Backlight Compensation
Day/night Switch Auto / Schedule / Alarm trigger
Network
Network Storage NAS
Alarm trigger Motion detection, dynamic analysis, tamper alarm, network disconnect,
IP address conflict,storage full, storage error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,
NTP, UPnP, SMTP,SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
Security User Authentication, Watermark, IP address filtering, Anonymous access
Standard ONVIF, PSIA, CGI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface
On-board storage Built-in Micro SD/SDXC slot, up to 64 GB
General
Working Temperature
/Humidity		 -22°F - 140°F(-30 °C - 60 °C()
Humidity 95% or less (non-condensing)
Power Supply 12V DC/ PoE
Power Consumption Max.11W
IR range Max. 33ft(10m)
Protection IEC 60068-2-75 test, Eh, 50J; EN 50102, EN50155
Dimension  164x152.8x45.5mm (6.46"x6.02"x1.79")
Weight 1.7lb(800 g )
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
amazing camera
very helpful and polite sales rep, great product.
From: Guest | Date: 1/29/2017 11:23 PM
Was this review helpful? Yes No (0/0)
Products specifications
Lens 360° FishEye
Resolution 3MP
Camera Features WDR
Technology IP/Network
