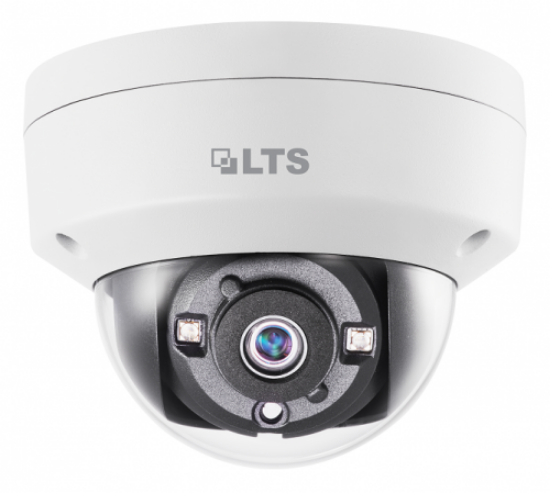

Platinum DOME HD-TVI Camera 5MP - 3.6mm (CMHD7352N-F)

SKU: 121767
MPN: CMHD7352N-F
Be the first to review this product
$139.95
$84.95

Accepted Payments

CMHD7352N-F Platinum ,High Definition Dome 5MP HD-TVI Camera with 3.6mm Fixed Lens ,2560x1944@20fps ,0.01 Lux,Smart IR ,2 Matrix IR 2.0 LED up to 66ft ,UTC Control to OSD Menu ,DC 12V ,IP67,IK10 ,2D DNR,DWDR ,4-in-1 Video Output and covered with 3 Years Warranty
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)
  • High Definition Dome 5MP HD-TVI Camera
  • 3.6mm Fixed Lens
  • 2560x1944@20fps
  • 0.01 Lux, Smart IR
  • 2 Matrix IR 2.0 LED up to 66ft
  • UTC Control to OSD Menu
  • DC 12V
  • IP67, IK10
  • 2D DNR, DWDR
  • 4-in-1 Video Output



CMHD7352N-F CAMERA
Image Sensor 5 MP CMOS
Signal System NTSC/PAL
Effective Pixels 2560(H)*1944(V)
Min. Illumination 0.01 Lux, 0 Lux with IR
Lens 3.6mm; FoV: 80.1°
Shutter Speed 1/30 (1/25) to 1/50,000 s
Day & Night ICR
Synchronization Internal
Video Frame Rate 2560 x 1944@20fps
HD Video Output 1 Analog Output
Switch Button TVI/AHD/CVI/CVBS
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
MENU
AGC Support
D/N Mode Color/ BW/ SMART
White Balance ATW/ MWB
DWDR Support
BLC Support
Function Brightness, Sharpness, DNR, Mirror, Smart IR
GENERAL
Working Temperature
/Humidity 		 -40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 4.3W
Weather Proof Ratings IP67, IK10
IR Range Up to 66ft (20m)
Dimensions Ø 4.4" × 3.2"(Ø 111 mm × 82.4 mm)
Weight 0.77 lbs (350g)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Lens 3.6mm
Resolution 5MP
Technology HD-TVI
Camera Features Outdoor
