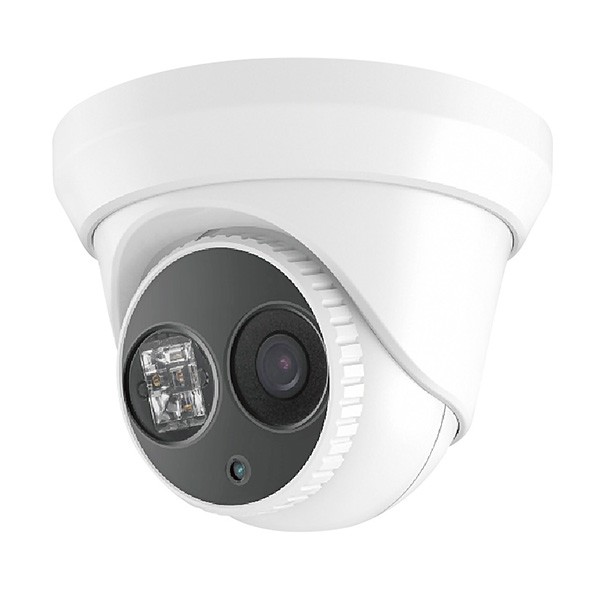

2.0MP Dome IP 1080p Camera DWDR 4mm (CMIP1122)

SKU: 121627
MPN: CMIP1122
Be the first to review this product
$229.95
$168.95

Accepted Payments

2.0 megapixel high resolution, HD real-time video, Day/night auto switch, IP66 ingress protection, Matrix IR illuminator (about65-100ft/20-30m), 3D DNR & DWDR, Video Content Analytics(VCA), Region of Interest(ROI)
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)
  • 2.0 megapixel high resolution
  • HD real-time video
  • Day / night auto switch
  • IP66 ingress protection
  • Matrix IR illuminator (about65-100ft/20-30m)
  • 3D DNR & DWDR
  • Video Content Analytics(VCA)
  • Region of Interest(ROI)



Camera
Image Sensor  1/2.8" progressive scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON)
0 Lux with IR
Shutter Speed 1/3s ~ 1/100,000s
Lens [email protected]
Angle of view: 79°
Lens Mount M12
Angle adjustment Horizontal: 0° ~ 360°, vertical: 0° ~ 75°, rotation: 0° ~ 360°
Day & Night ICR
Digital Noise Reduction 3D DNR
Wide Dynamic Range Digital WDR
Compression Standard
Video Compression H.264 / MJPEG
Bit Rate 32 Kbps ~ 8 Mbps
Dual stream Yes
Max. Resolution 1920 x 1080
Frame Rate 60 Hz: 30 fps (1920 × 1080), 30fps (1280 × 960), 30 fps (1280 x 720)
50 Hz: 25 fps (1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 x 720
Image Settings

Rotate mode, Saturation, Brightness, Contrast adjustable

by client software or web browser
BLC Yes, zone optional
ROI Support
Network
Network Storage NAS (Support NFS, SMB/CIFS)
Alarm Trigger ntrusion detection, Line crossing detection, Motion detection, Dynamic
analysis, Tampering alarm, Network disconnect , IP address conflict,
Storage exception
Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,

PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System Compatibility ONVIF, PSIA, CGI, ISAPI
General functionalities

One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection,

privacy mask, watermark, IP address filtering, Anonymous access
Interface
Communication Interface 1 RJ45 10M / 100M ethernet port
General
Working Temperature
/Humidity		 -22°F ~ 140°F(-30°C ~ 60°C )   humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 10%, PoE (802.3af)
Power Consumption Max. 7.5W
Ingress Protection Level IP66
IR Range About 65 to 100ft(20-30m)
Dimension  Φ5.0"× 3.8"(Φ126.7 x 97.2 mm)
Weight 1.3lb(570g)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Lens 4mm
Technology IP/Network
Camera Features Outdoor
Camera Features WDR
