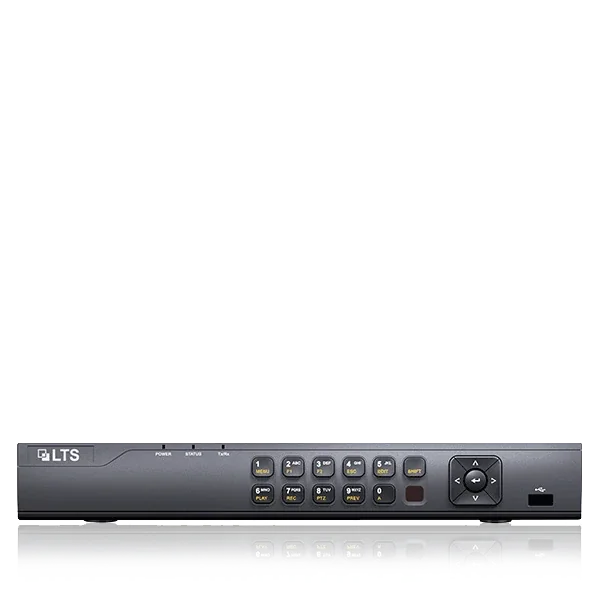

5MP Platinum 4 Channel HD-TVI 4.0 DVR (LTD8504K-ST) 5MP Platinum 4 Channel HD-TVI 4.0 DVR (LTD8504K-ST)

5MP Platinum 4 Channel HD-TVI 4.0 DVR (LTD8504K-ST)

SKU: 121775
MPN: LTD8504K-ST
1 review(s) | Add your review
5.0 1

storage calculator

$229.95
$199.95

Accepted Payments

LTD8504K-ST 4Ch HD-TVI Platinum Hybrid DVR supporting 5MP HD-TVI Cameras along with analog and 2 additional IP cameras at up to 6MP resolution, 1080p HDMI output, 4Ch audio, 1SATA up to 8TB and real time recording @1080p and 15fps at 5MP. 3 years warranty.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)
  • H.265/H.265+ 4 Channel Video Recorder
  • 4/1 RCA  I/O
  • 4 Channels Support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
  • 4 Channels Support up to 5MP HD-TVI input
  • Up to 2CH 6MP IP Cameras Input
  • Support Live View, Storage, Playback up to 4 HD-TVI / Analog Cameras + 2 IP Cameras
  • Up to 1080P HDMI Video Output
  • CVBS Output
  • 1 SATA up to 8TB HDD each
  • 2 USB 2.0
DVR LTD8504K-ST
Video Compression H.265+/H.265/H.264 Zip+/H.264
Video Input 4ch
BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection
IP Input 2-ch, Up to 6 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
HDTVI input 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
Audio Compression G.711u
Audio Input 4-CH, RCA (2.0 Vp-p kΩ)
Two-Way Audio Input 1-CH, RCA (2.0 Vp-p kΩ)
VIDEO/AUDIO OUTUPUT
HDMI/VGA Output 1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
Encoding resolution 5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIFs
CVBS output 1-ch, BNC (1.0 Vp-p, 1 kΩ), resolution: PAL: 704 × 576, NTSC: 704 × 480
Frame Rate Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)
Sub-stream: WD1/4CIF/CIF@25fps (P)/30fp s (N)
Video Bit Rate 32 Kbps-10 M bps
Audio Output 1-ch, RCA (Linear, 1 kΩ)
Audio Bit Rate 64 Kbps
Dual Stream Support
Stream Type Video, Video & Audio
Synchronous Playback 4ch
NETWORK
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP™, HTTPS, ONVIF
HARD DISK
SATA 1 SATA
Capacity Up to 8TB capacity for each disk
EXTERNAL INTERFACE
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Serial interface RS-4 85 (half-duplex)
USB Port 2 × USB2.0
Alarm In/Out 4/1
GENERAL
Power supply DC12V
Consumption ≤ 10W
Working temperature -10 °C ~ +55 °C(14°F - 131°F)
Working humidity 10% ~ 90%
Chassis 1U
Dimensions (WxDxH) 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight ≤1.6Kg (2.6 lb)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
Very impressed with this unit
We just got this DVR to replace our old 1080p, the new 5MP is very sharp, very happy with the purchase.
From: Guest | Date: 9/30/2018 11:12 AM
Was this review helpful? Yes No (0/0)
Products specifications
Number of Channels 4Ch
Technology Hybrid
Technology HD-TVI
